Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | cảm biến PH | Phạm vi đo lường: | 0~14pH |
|---|---|---|---|
| Không (E0) pH: | ± 0,25ph | % Độ dốc: | ＞ 95% |
| Áp lực làm việc: | 0-6 vạch | Làm việc tạm thời: | 0~100℃ |
| Đơn vị nhiệt độ: | PT100, PT1000, NTC10K tùy chỉnh | Kích thước cài đặt: | PG13.5 |
| Đuôi chì: | Tích phân hoặc chia | Dây điện: | tiêu chuẩn 5 mét |
| Ứng dụng: | Axit mạnh & kiềm | ||
| Làm nổi bật: | high temperature resistant pH sensor,analog pH sensor for strong acid,135℃ resistant ORP sensor |
||
The Daruifuno pH sensor ASP101E delivers precise ORP measurement across a full range of 0 to ±2000mV. Its advanced design features:
Engineered for versatile performance in diverse conditions:
Standard dimensions: 12mm diameter × 120mm length (custom sizes available)
|
Model |
ASP120E |
ASP121E |
ASP122E |
ASP123E |
ASP124E |
|
Measuring Object |
PH |
||||
|
Measuring Range |
0~14pH |
||||
|
Indicator Electrode |
low impedance cylindrical glass membrane |
||||
|
Reference System |
Ag/AgCl reference electrode, double salt bridge, KCl gel |
||||
|
Electrode Material |
Glass+Dot-shaped ceramic hole |
Glass+Porous tetrafluoro ring |
Glass+ceramic sand core |
||
|
Working Pressure |
Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar |
||||
|
Working Temp. |
Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes
Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.) |
||||
|
Sample Flow Rate |
0.5 m/s ≥ flow velocity ≥ 0.001 m/s |
||||
|
Zero (E0) |
±0.25pH |
||||
|
SLOP% |
＞95% |
||||
|
Temperature Unit |
PT100, PT1000, NTC10K customized |
||||
|
Dimension |
Standard: diameter 12mm/Length 120mm (customized) |
||||
|
Installation Thread |
PG13.5 |
||||
|
Tail Lead |
Integral or split |
||||
|
Application |
Strong acid and alkali |
Normal temp. pure water >5μS/cm |
Harsh industrial process* |
Normal temp. desulfurization or viscous slurry |
Hydrofluoric acid with concentration ≤4000ppm |
| Model | ASP125E | ASP126E | ASP127E | ASR120E | ASP128E |
| Measuring Object | PH | ORP | PH | ||
| Measuring Range | 0~14pH | ±2000mV | 0~14pH | ||
| Indicator Electrode | low impedance cylindrical glass membrane | Platinum | glass membrane | ||
| Reference System | Ag/AgCl reference electrode, double salt bridge, KCl gel | ||||
| Electrode Material | Glass+ceramic sand core | ||||
| Working Pressure |
Medium and low temp environment: max. 0~6bar High temp environment: 0~3bar |
max. 0~6bar | |||
| Working Temp. |
Medium and low temp. environment: 0~80℃, continuous work High temp. environment: 80~100℃, continuous work for less than 60 minutes
Customzied as below : Medium and low temp. Env.: 0~100℃, continuous work High temp. Env.: 100~135℃, continuous work < 60 mins High temp. Env. work more than 40 times (clean water test env.) |
-15~80℃, continuous work | |||
| Sample Flow Rate | 0.5 m/s ≥ flow velocity ≥ 0.001 m/s | ||||
| Zero (E0) | ±0.25pH | ||||
| SLOP% | ＞95% | ||||
| Temperature Unit | PT100, PT1000, NTC10K customized | ||||
| Dimension | Standard: diameter 12mm/Length 120mm (customized) | ||||
| Installation Thread | PG13.5 | ||||
| Tail Lead | Integral or split | ||||
| Application |
Strong acid and alkali |
Harsh conditions &high pollution |
Fermentation process |
High temp. Industrial process |
Low temp. |

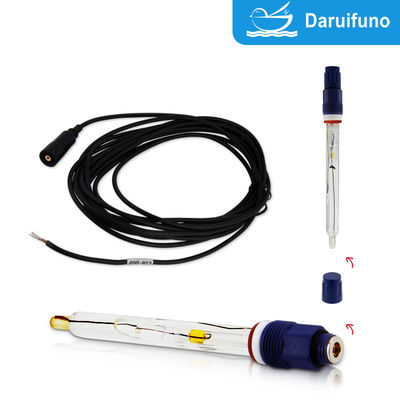

The ASR101E glass pH sensor offers ultimate flexibility with custom mounting accessories for any industrial environment:
The optional PTFE (Teflon) sheath provides exceptional corrosion resistance in harsh chemical environments. Featuring 3/4" NPT threads for easy attachment to mounting accessories, it ensures seamless integration across various applications.
The ASR101E ORP sensor serves critical monitoring needs across multiple industries:
